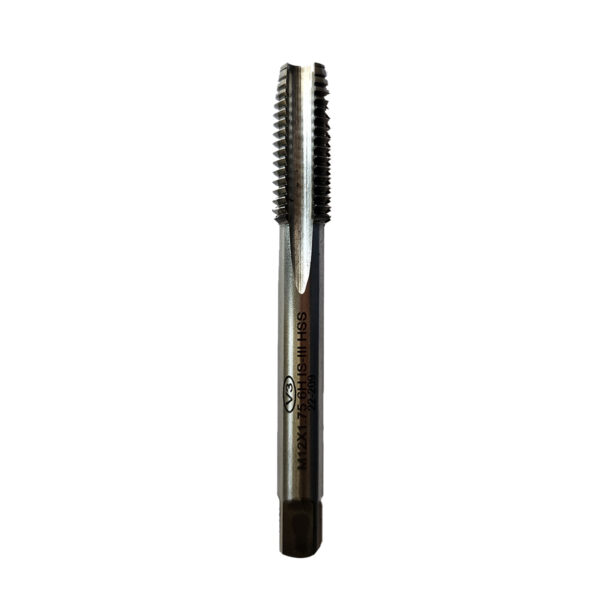

HSS GROUND THREAD LONG SHANK MACHINE TAPS (COARSE/FINE)
- These Taps are made from HSS grade M2, M35, M42 and available range from M3 TO M24.
- These Tap standard tolerance is 6H and also available 6G.
- These Tap available standard packing of sets of 3 (SO3) and taper, second, bottoming lose Tap available in minimum packing of 5 NOS.
- It recommended to use for through holes.
| HSS GROUND THREAD THREAD LONG SHANK MACHINE TAPS – COARCE PITCH | |||
| IS 6175 – PART – 4 | |||
| SIZE | DRILL SIZE | TL | OAL |
| M3X0.5 | 2.51 | 11 | 66 |
| M6X1.0 | 5.03 | 19 | 89 |
| M10X1.5 | 8.54 | 24 | 108 |
| M16X2.0 | 14.05 | 32 | 137 |
| M22X2.5 | 19.65 | 38 | 158 |
| HSS GROUND THREAD THREAD LONG SHANK MACHINE TAPS – FINE PITCH | |||
| IS 6175 – PART – 4 | |||
| SIZE | DRILL SIZE | TL | OAL |
| M3X0.35 | 2.66 | 11 | 66 |
| M6X0.75 | 5.25 | 19 | 89 |
| M10X0.75/1.0/1.25 | 9.27/9.03/8.78 | 17/20/20 | 104/108/108 |
| M16X1.0 | 15.03 | 22 | 127 |
| M22X2.0 | 20.05 | 38 | 158 |
