SPECIAL NOTES
HSS Jobber sizes is 3mm to 9.92mm in multiple of 10 NOS and 10mm to 13mm in multiple of 5 NOS as per standard packing.

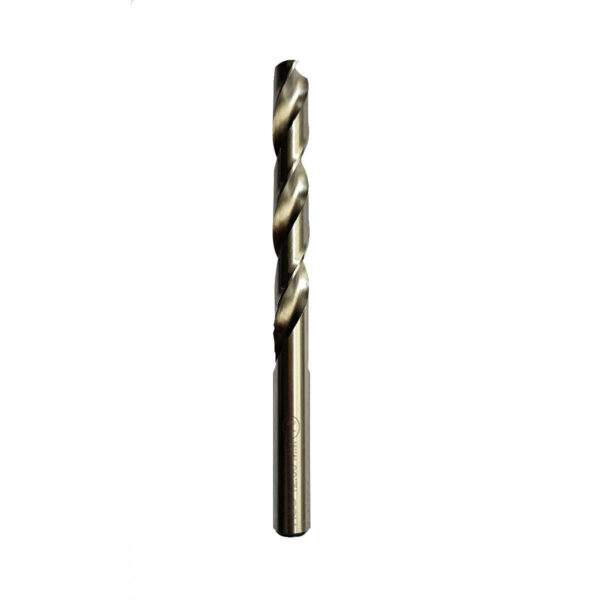

HSS PARALLEL SHANK JOBBER DRILL AS PER IS: 5101
- Having two helical flutes with a parallel shank. 30° helix – general purpose drills.
- It is most suitable for drilling of steel, cast iron, alloy steel, and malleable cast iron and possible to drill stainless steel, brass, shallow hole of Aluminium Alloy, Nickel and almost all kind of material.
Standard size available
| IS | BS | DIN | |
| 5101 | 328 | 338 | |
| Size – Diameter | Length – mm | ||
| MM | INCH | FLUTE | OVERALL |
| 1.00 | 12 | 34 | |
| 2.38 | 3/32 | 30 | 57 |
| 3.00 | 36 | 65 | |
| 4.37 | 11/64 | 47 | 80 |
| 5.00 | 52 | 86 | |
| 6.35 | 1/4 | 63 | 101 |
| 7.00 | 69 | 109 | |
| 8.33 | 21/64 | 75 | 117 |
| 9.00 | 81 | 125 | |
| 10.32 | 13/32 | 87 | 133 |
| 13.00 | 101 | 151 | |
Additional information
| Range | 1.00MM TO 13.00MM |
|---|---|
| Usage/Application | Metal Drilling |
| Material | High Speed Steel |
| Material Grade | M2, M35 |
| Length | Standard and as per IS: 5101 |
| Product Type | Straight Shank |
| Color | Silver |
| Country of Origin | Made in India |
| Brand | V3 Tools |
| Coating | TIALN as per standard, TIN |
