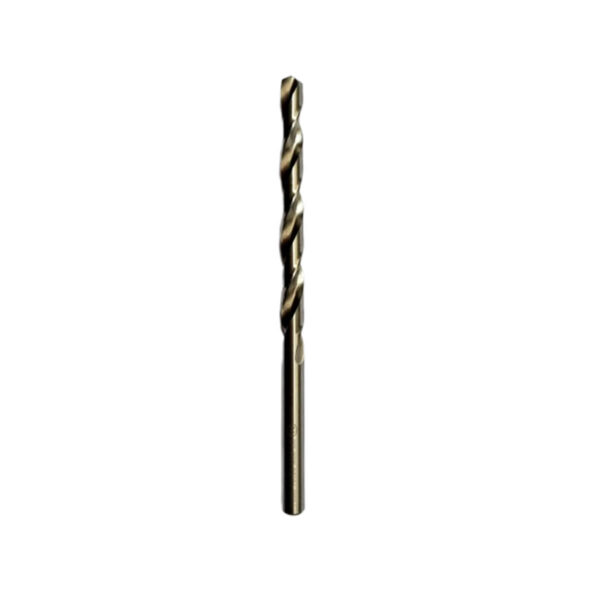

HSS PARALLEL SHANK LONG DRILL AS PER IS: 5102

  • Having two helical flutes with a parallel shank. Longer length than the jobber drill, 30° helix – general purpose drills.
  • It is most suitable for drilling of steel, cast iron, alloy steel, and malleable cast iron and possible to drill stainless steel, brass, shallow hole of Aluminium Alloy, Nickel and almost all kind of material.

Standard size available

IS: 5102 DIN: 340 BS: 328
Size – Diameter Length – mm
MM FLUTE OVERALL
1 33 56
4 78 119
7 102 156
10 121 184
13 134 205

Additional information

Range

1.00MM TO 13.00MM

Usage/Application

Metal Drilling

Material

High Speed Steel

Material Grade

M2, M35

Length

Standard and as per IS: 5102

Product Type

Straight Shank

Color

Silver

Country of Origin

Made in India

Brand

V3 Tools

Coating

TIALN as per standard, TIN
