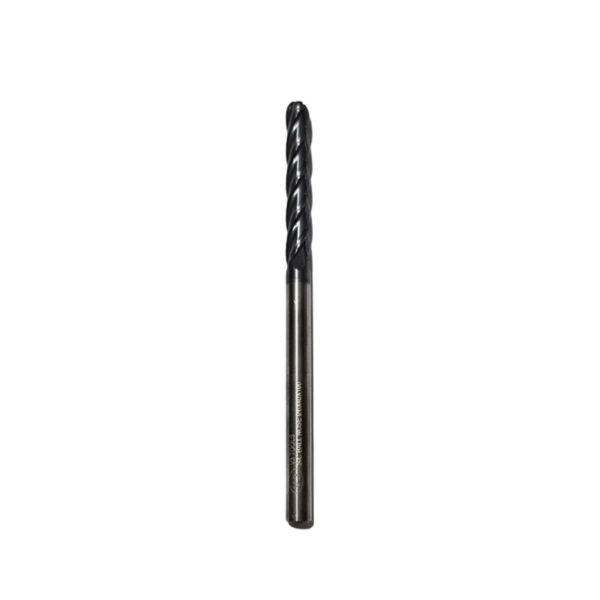

SC LONG & EXTRA LONG BN EM 2/4 FLUTE
- VX1 Series 45 HRC TIALN Coated 10% Cobalt (K20UF) Grain Size: – 0.6-0.8(µm).
- VX2 Series 55 HRC ALCRONA Coated 10% Cobalt (K20-30) Grain Size: – 0.5-0.6(µm).
- VX3 Series 65 HRC TISINOS Coated 12% Cobalt (K44-K44UF) Grain Size: – 0.4-0.5(µm).
SC LONG BN RANGE
- 2F BN – 3mm to 25mm
- 4F BN – 3mm to 25mm
SPECIAL NOTE
- No. of flutes: 2/3/4 Flute.
- Size & length can also be customized/tailor made as per customer’s specific requirements.
- Available with or without coating.
| SC LONG & EXTRA LONG BALL NOSE 4 FLUTE | |||||
| VX1 (45HRC) | VX2 (55HRC) | VX3 (65HRC) | |||
| Sr. No. | SIZE | DIA | SH. DIA | FL | OAL |
| STANDARD SIZE | |||||
| 1 | 3X20X60 | 3 | 3 | 20 | 60 |
| 2 | 4X25X75 | 4 | 4 | 25 | 75 |
| 3 | 5X40X100 | 5 | 5 | 40 | 100 |
| 4 | 6X35X75 | 6 | 6 | 35 | 75 |
| 5 | 8X40X100 | 8 | 8 | 40 | 100 |
| 6 | 10X75X150 | 10 | 10 | 75 | 150 |
| 7 | 12X50X100 | 12 | 12 | 50 | 100 |
| 8 | 14X75X150 | 14 | 14 | 75 | 150 |
| 9 | 16X75X200 | 16 | 16 | 75 | 200 |
| 10 | 18X75X150 | 18 | 18 | 75 | 150 |
| 11 | 20X75X150 | 20 | 20 | 75 | 150 |
| 12 | 25X75X200 | 25 | 25 | 75 | 200 |
