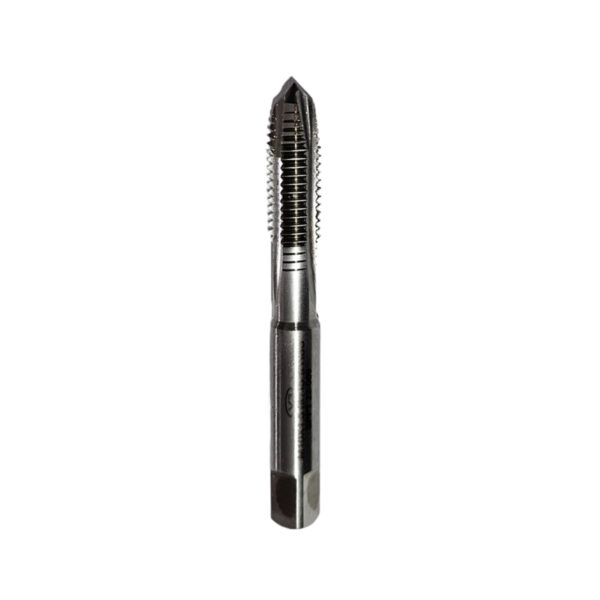

SPPT TAP
- These Taps are made from HSS grade M2, M35, M42 and available range from M3 TO M24.
- These Tap standard tolerance is 6H and also available 6G.
- These Tap available standard packing of lose Tap available in minimum packing of 5 NOS.
- It recommended to use for through holes.
| SPPT TAP – COARSE PITCH | |||
| IS 6175 – PART 1,2 & 3 | |||
| SIZE | DRILL SIZE | TL | OAL |
| M3X0.5 | 2.5 | 11 | 48 |
| M6X1.0 | 5 | 19 | 66 |
| M10X1.5 | 8.5 | 24 | 80 |
| M16X2.0 | 14 | 32 | 102 |
| M22X2.5 | 19.5 | 38 | 118 |
| M30X3.5 | 26.5 | 48 | 138 |
| SPPT TAP – FINE PITCH | |||
| IS 6175 – PART 1,2 & 3 | |||
| SIZE | DRILL SIZE | TL | OAL |
| M3X0.35 | 2.66 | 11 | 48 |
| M6X0.75 | 5.25 | 19 | 66 |
| M10X0.75/1.0/1.25 | 9.27/9.03/8.78 | 17/20/20 | 73/76/76 |
| M16X1.0 | 15.03 | 22 | 92 |
| M22X2.0 | 20.05 | 33 | 118 |
| M30X1.0/1.5 | 29.03/28.54 | 30/37 | 120/127 |
